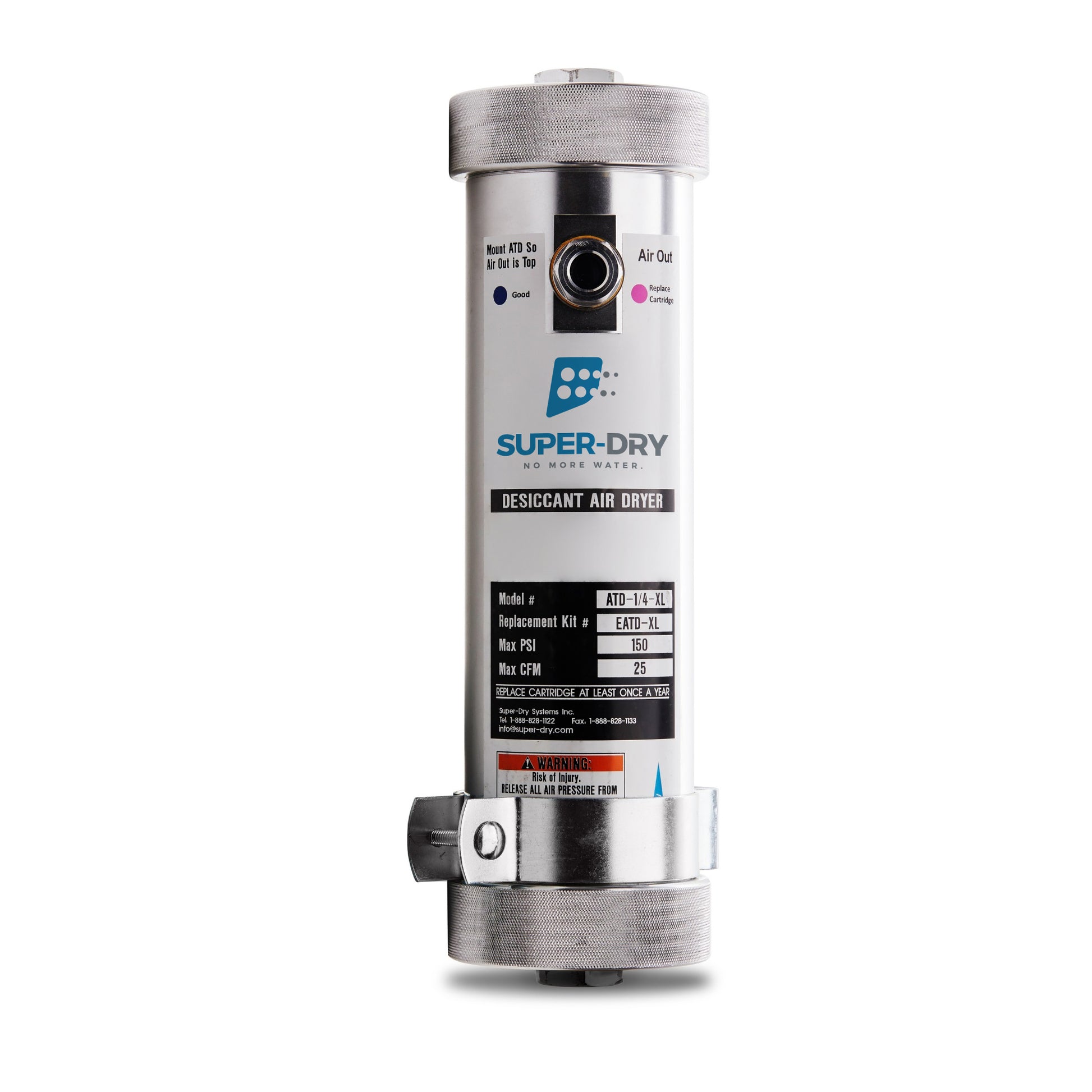

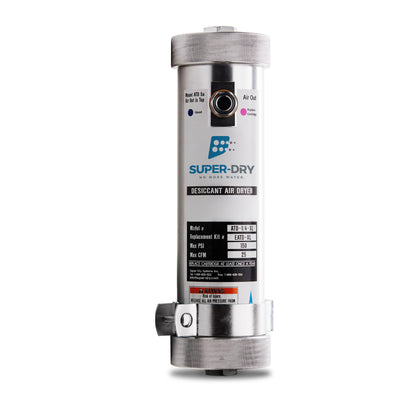

ATD 1/4 XL -Air Tool Dryer

DESCRIPTION

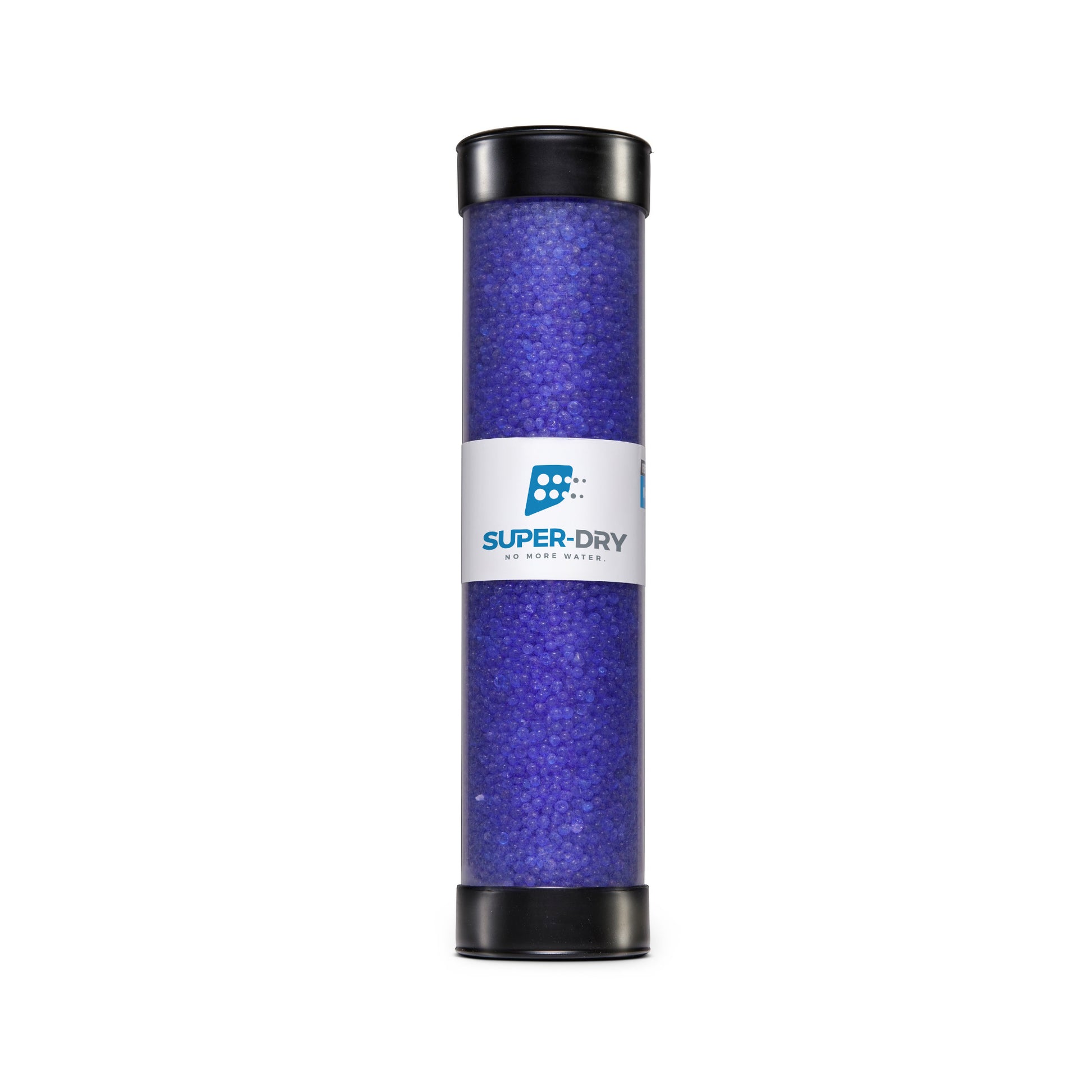

The ATD Series is an in-line compressed air dryer designed for point-of-use applications such as paint shops.  The in-line dryer will remove water and moisture from compressed air, making it perfect for air tools, pneumatic equipment, or instruments requiring dry air.  When used in a cold environment, it will prevent nail guns from freezing.  The cartridge consists of silica gel (blue pellets) in a plastic tube.  Replacing the In-line Dryer cartridge is a quick procedure. The built-in sight glass indicates when the desiccant is saturated.  The unit comes with a fixing clip. The dryer is perfect for intermittent use and offers a very low-pressure drop.

SPECS

• INLET / OUTLET PORTS: 1/4" NPT
• AIR FLOW @ 100 PSIG: 25 SCFM
• MAXIMUM INLET PRESSURE: 150 PSIG
• MAXIMUM INLET TEMPERATURE: 100°F (38°C)
• PRESSURE DIFFERENTIAL: 1.5 PSID (@100 PSI)

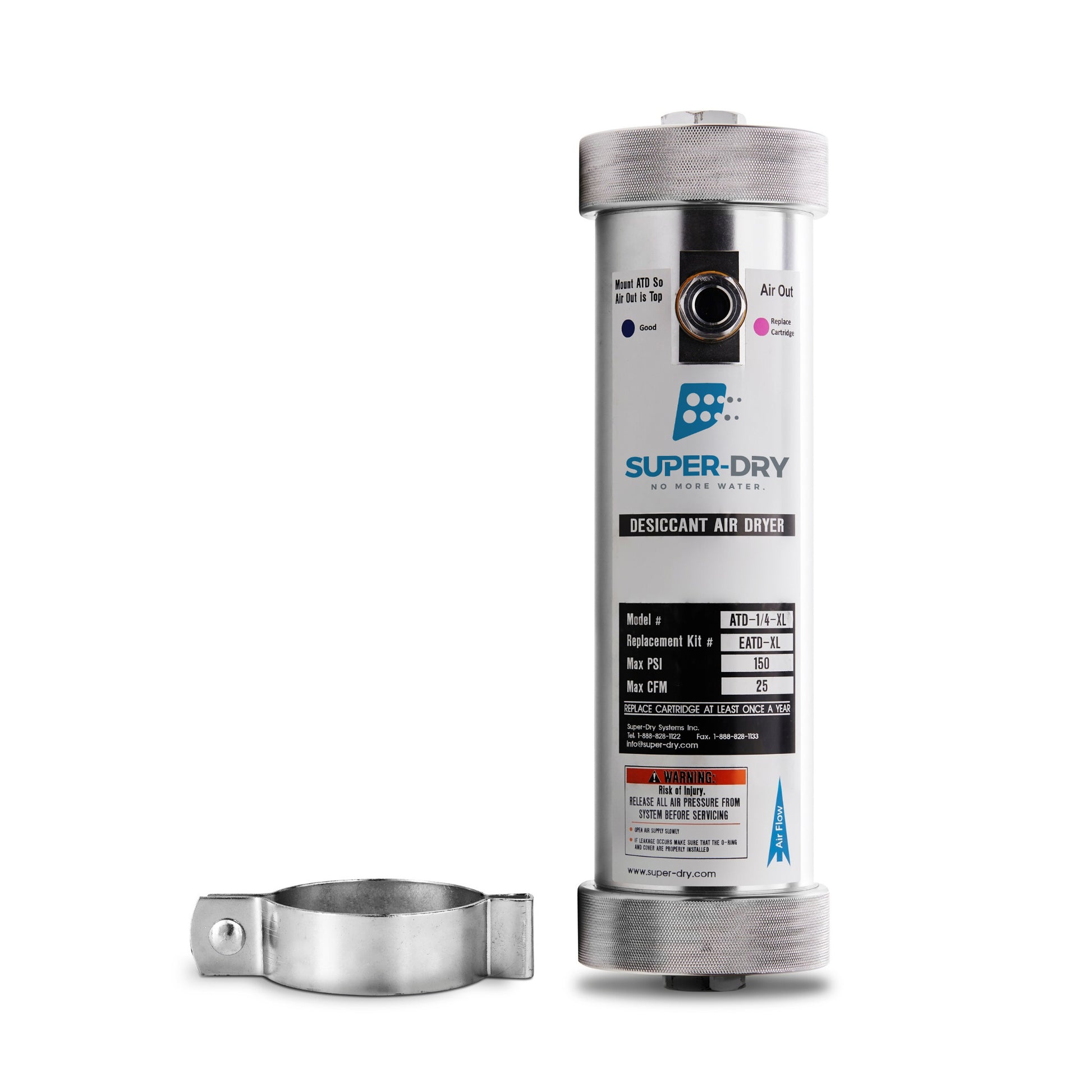

• FIXING CLIP INCLUDED
